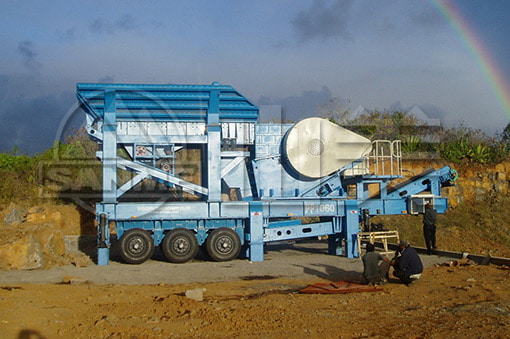

PP Series Portable Jaw Crusher

PP Series Portable Jaw Crusher adopt the professional mobile crushing technology. They can fully meet customers’ different mobile crushing requirements. Compared with the stationary crushing plant, they can greatly reduce the customers’ operation cost.

Capacity

50-845t/h

Max feeding size

400-1200mm

Raw materials

River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.

Application

Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

The Outstanding Performance of PP Series Portable Crusher

PP Series Portable Jaw Crusher

Great Mobility

PP Series Portable Crushing Plants are of short length. Different crushing equipment is separately installed on a separate mobile chassis. Its short wheelbase and tight turning radius mean they can be transported on highway and moved at crushing sites.

PP Series Portable Jaw Crusher

Lower Transportation Cost

PP Series Portable Crushing Plants can crush materials on-site. It is unnecessary to carry the materials from one site and then crush them in another one, which can greatly lower the transporting cost for off-site crushing.

PP Series Portable Jaw Crusher

Flexible Configuration and Great Adaptability

According to the different requirements of different crushing process, PP Series Portable Crushing Plants can form the following two processes of "crushing first, screening second" or "screening first, crushing second". The crushing plant can be composed of two-stage plants or three-stage plants. The two-stage plants consists primary crushing plant and secondary crushing plant, while the three-stage plants includes primary crushing plant, secondary crushing plant and tertiary crushing plant, each of which is of high flexibility and can be used individually.

The Design Features of PP Series Portable Crusher

PP Series Portable Jaw Crusher

Mobile chassis conforms to the international standards. It has standard lighting and braking system. The chassis is heavy-duty design with big section steel.

PP Series Portable Jaw Crusher

The girder of mobile chassis is designed to be U style so that the overall height of the mobile crushing plant is reduced. So the loading cost is reduced greatly.

PP Series Portable Jaw Crusher

Adopt hydraulic leg(optional) for lift installation.Hopper adopt unitized design,reduce the transport height greatly.



Features of PP Series Portable Jaw Crusher

High-performance JC Series Jaw Crusher.

Vehicle-mounted feeder and high-intensity vibrating screen of short length, light weight, high mobility, and strong adaptability, which is of flexible combination and reduces transportation costs – whether rough crushing, fine crushing or sand making operations.

Its design philosophy is to fully adapt to the various situations, eliminating barriers of mobile crushing site, environment, basic configuration of the crushing plant

SANME really provides simple, efficient, low-cost rock crushing equipment which is mainly used in metallurgy, chemical industry, building materials, hydroelectric project or other material which is often needed to be relocated ,especially suitable for highway, railway, hydropower engineering project.

Customers can choose various configuration depending on the type of raw materials, scale and requirements of final products. Mobile jaw crusher plant greatly expands the concept of coarse crushing.

PRODUCT DISPLAY

PP Series Portable Jaw Crusher
PP Series Portable Jaw Crusher
PP Series Portable Jaw Crusher
PP Series Portable Jaw Crusher
PP Series Portable Jaw Crusher

Working principle of PP Series Portable Jaw Crusher

Through the feeder, materials evenly delivered to the crusher. After primary crushing of jaw crusher, a closed system is formed by vibrating screen. Final is discharged by belt conveyor , which is continuous crushing operations. Jaw mobile crusher can remove vibrating screen to realize primary crushing of raw material directly according to the actual production. It can be used with other broken equipment which is easy and flexible to operate.

Applications of PP Series Portable Jaw Crusher

It is widely used in mine, coal mine, waste and construction waste recycling, cubic meter of earth and stone project, urban infrastructure, road and building construction.

It can be used in topsoil and various other materials processing; separation viscous coagulation aggregate; construction and demolition industry; screening after broken; quarrying industry.

It can be adopted to crush cobble, rocks(limestone, granite, basalt, diabase, andesite etc.), ore tailings and sand making of aggregate chips.

Product Data

Technical Data of PP Series Portable Jaw Crusher

PP Series Portable Jaw Crushers PP231JC PP340JC PP440JC PP443JC PP549JC
Transport dimensions
Length(mm) 10650 11850 12910 13356 13356
Width(mm) 2550 3170 3120 3259 3259
Height(mm) 3900 3956 4438 4581 4881
Jaw Crusher
Model JC231 JC340 JC440 JC443 JC549
Feed opening(mm) 510*810 600*1020 760*1020 850*1100 950x1250
Setting range(c.s.s)(mm) 40-150 60-175 70-200 80-125 110-250
Capacity(t/h) 50-250 85-300 120-520 190-670 315-845
Feeder
Model GZT0932Y ZSW380*95 ZSW490*110 ZSW490*130 ZSW490*130
Feed hopper volume(m3) 6 7 10 10 10
Belt Conveyor
Model B800*6.8 B1000*7.5 B1000*7.5 B1200*8.3 B1200*8.3
Magnetic Separator (optional) RCYD-8 RCYD-10 RCYD-10 RCYD-10 RCYD-10
Side belt Conveyor (optional) B500*2.7 B500*2.7 B500*2.7 B500*2.7 B500*2.7
Number of Axles 1 2 3 3 4

The crusher capacities listed are based on instantaneous sampling of medium hardness material. The above data are for reference only, please contact our engineers for equipment selection of specific projects.
